Wheel Dressing and Truing: Extending the Life of Diamond & CBN Wheels

Diamond and CBN grinding wheels are premium superabrasive tools designed for precision, durability, and long service life. However, without proper dressing and truing, even the highest-quality wheels can lose cutting efficiency, cause poor surface finishes, and increase production costs. This guide explains how dressing and truing work, when to perform them, and how they maximize the lifespan of your wheels.

What Is Wheel Dressing?

Dressing is the process of cleaning and restoring the cutting surface of a grinding wheel by removing:

• Loaded material (swarf)

• Bond smearing

• Glazed abrasive grains

Purpose:
✔ Restore cutting ability
✔ Improve surface finish
✔ Reduce grinding heat
✔ Prevent workpiece burn

For diamond and CBN wheels, dressing exposes fresh abrasive crystals, ensuring efficient cutting rather than rubbing.

What Is Wheel Truing?

Truing restores the wheel’s geometric accuracy by correcting:

• Out-of-roundness

• Runout

• Profile inaccuracies

Purpose:
✔ Maintain dimensional accuracy
✔ Ensure concentric rotation
✔ Produce consistent part geometry

Truing is essential for precision applications such as tool & cutter grinding, aerospace components, and mold making.

Dressing vs Truing: Key Differences

Both processes are often performed together for optimal results.

Why Dressing & Truing Matter for Diamond & CBN Wheels

Superabrasive wheels differ from conventional abrasives because of their extremely hard grains and durable bonds.

Benefits:

• Extends wheel life significantly

• Maintains consistent surface finish

• Reduces grinding forces and heat

• Prevents costly scrap and rework

• Improves machine efficiency

Proper maintenance can double or triple usable wheel life in industrial settings.

Signs Your Wheel Needs Dressing or Truing

Watch for these indicators:

• Increased grinding force or vibration

• Burn marks on workpieces

• Poor surface finish

• Wheel glazing or loading

• Dimensional inaccuracies

• Excessive heat generation

Ignoring these signs leads to tool damage and production downtime.

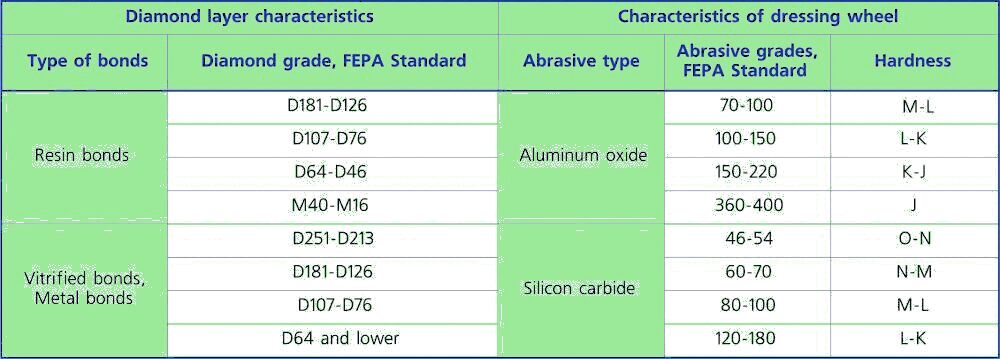

Dressing Methods for Diamond & CBN Wheels

Because superabrasives are extremely hard, dressing methods differ from conventional wheels.

1. Aluminum Oxide Dressing Sticks

Used to clean and open the wheel structure.

Best for:

• Resin bond diamond wheels

• Removing loading and glazing

2. Silicon Carbide Dressing Stones

Effective for dressing metal bond diamond wheels.

Best for:

• Exposing fresh diamond grains

• Restoring cutting ability

3. Rotary Diamond Dressers

Used for precision truing and profiling.

Best for:

• CNC grinding machines

• High-precision applications

4. Brake-Controlled Dressing

A controlled method for vitrified CBN wheels.

Best for:

• Maintaining wheel form

• High-volume production environments

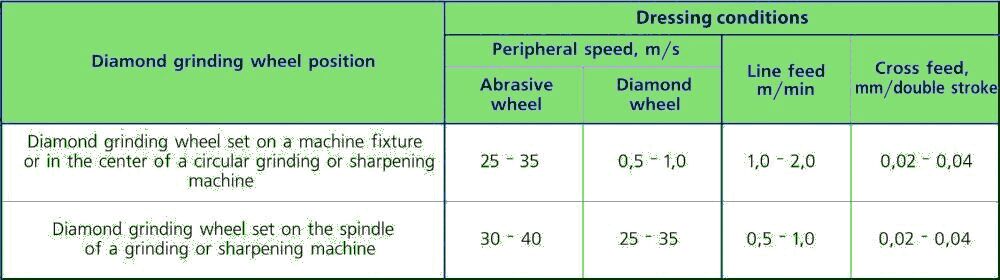

Best Practices for Dressing Diamond & CBN Wheels

✔ Use light pressure to avoid grain pullout
✔ Match dressing tool hardness to bond type
✔ Apply coolant to prevent thermal damage
✔ Dress regularly instead of waiting for severe loading
✔ Follow manufacturer speed recommendations

Truing Techniques for Precision Grinding

Common truing methods include:

• Single-point diamond tools – for vitrified CBN wheels

• Rotary diamond rolls – for profile accuracy

• Brake truing – for high-speed operations

Proper truing ensures minimal runout and accurate part geometry.

How Proper Maintenance Extends Wheel Life

Without maintenance:

• Wheels glaze → increased heat → grain fracture → premature failure

With dressing & truing:

• Fresh grains exposed

• Lower grinding forces

• Even wear distribution

• Longer tool life

Result: Reduced cost per part and improved productivity.

Common Mistakes to Avoid

❌ Using excessive force during dressing
❌ Dressing too frequently (unnecessary wear)
❌ Ignoring coolant use
❌ Using incorrect dressing tools
❌ Running wheels with excessive runout

Avoiding these errors preserves wheel integrity and performance.

Conclusion

Dressing and truing are essential maintenance practices that ensure diamond and CBN wheels deliver maximum performance, precision, and lifespan. By implementing proper techniques and monitoring wheel condition, manufacturers can reduce costs, improve surface quality, and maintain consistent production standards.
